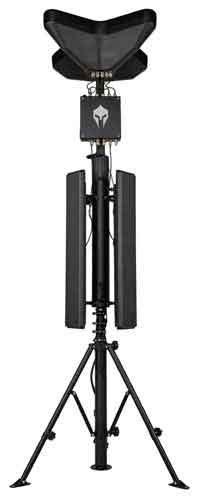

KVERTUS MS AZIMUTH
TECHNICAL SPECIFICATIONS
A signals intelligence (SIGINT) system designed to detect the full spectrum of radio emitters, including UAVs and
their Ground Control Stations (GCS), repeaters, EW assets, radars, and telecommunication systems. Analyzes the signal, determines target bearing,
and intercepts the video channel from the UAV. Invisible to enemy radio
reconnaissance.
| Operating frequency range | 30–6000 MHz |
| Instantaneous bandwidth | 200 MHz |
| Frequency scanning speed | 540 GHz/s |
| Maximum detection range | up to 150 km |
| Frequency resolution | 30 MHz |
| Maximum detection range | up to 150 km |
| Minimum bearing time | 0.04 ms |
| Bearing accuracy | ≤5° (RMS) |
| Vertical coverage | 60° |
| Horizontal coverage | 360° |
| Polarization | vertical |
| Signal processing | digital |
| Simultaneously tracked targets | ≤100 |
| Target detection | automatic |
| Serviceability monitoring | automatic |
| Fault detection | semi-automatic, with accuracy down to a replacement module |
| Interface | Ethernet |
| Power consumption | 100 W (220 V, 50 Hz) |
| Operating temperature | –20 °С to +40 °С |
| Weight (without the antenna feeder system) | up to 25 kg |
