KVERTUS MS GARUDA
TECHNICAL SPECIFICATIONS
An airborne SIGINT system integrated into a counter-UAV
solution. It monitors the RF spectrum, detects signals across a wide frequency range, and locates emission sources up to 150 km away.

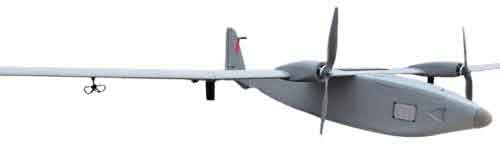

The system includes two UAVs equipped with Horizon
SIGINT technology and a ground control station. It supports data recording and independent operation by a SIGINT operator.
| RTR product | |
|---|---|
| Radio monitoring operating frequency range | 30-6000 MHz |
| Instantaneous bandwidth | 400 MHz |
| Frequency scanning speed | 200–400 GHz/s |
| Maximum detection range | up to 150 km |
| Viewing area: – by azimuth 360° – by elevation angle 80° | |
| Signal processing | digital |
| Identifying goals | automatic |
| Performance monitoring | automatic |
| Fault detection: semi-automatic, with variable module accuracy | |
| Operating temperature range | –20…+50 °C |
| Remote detection device carrier | |
|---|---|
| Type | “wing” type UAV |
| Range | up to 150 km |
| Flight altitude: – Primary: 3–5 km – Operating range: 0.1–5 km | |
| Flight duration | up to 3 hours |
| Launch | catapult |
| Identifying goals | unprepared open area |
